HSK End Mill Holders - HSK-A63
HSK-A63 End Mill Holders with Weldon Notch DIN1835-B
To add a part to your cart, click the
icon. To request information or a quote click View Cart.
Stock standard
, Non-stock standard
, Non-stock special

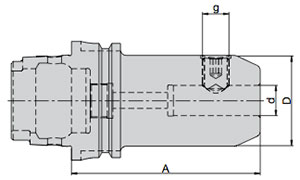

Description
HSK-A
Version
d
D
A (inch)
A (mm)
g
Coolant Supply
Ident No
WSLH/0.250-3.94/HSK-A63
63
inch
0.25
1
3.94
100
1/4"-28 UNF
Form "AD"
66652161M
Qty
Add
WSLH/0.375-3.94/HSK-A63
63
inch
0.375
1.1
3.94
100
3/8"-24 UNF
Form "AD"
66652162M
Qty
Add
WSLH/0.500-3.94/HSK-A63
63
inch
0.5
1.65
3.94
100
7/16"-20 UNF
Form "AD"
66652163M
Qty
Add
WSLH/0.625-3.94/HSK-A63
63
inch
0.625
1.89
3.94
100
1/2"-20 UNF
Form "AD"
66652164M
Qty
Add
WSLH/.750-3.94/HSK-A63
63
inch
0.75
2.05
3.94
100
5/8"-18 UNF
Form "AD"
66652165M
Qty
Add
WSLH/1.00-4.33/HSK-A63
63
inch
1
2.6
4.33
110
3/4"-16 UNF
Form "AD"
66652166M
Qty
Add
WSLH/1.250-4.33/HSK-A63
63
inch
1.25
2.83
4.33
110
3/4"-16 UNF
Form "AD"
66652167M
Qty
Add
