Drilling SEK_ESX
Drilling SEK_ESX
To add a part to your cart, click the
icon. To request information or a quote click View Cart.
Stock standard
, Non-stock standard
, Non-stock special

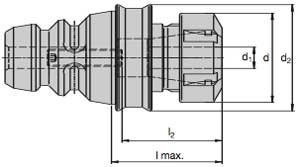

Description
Series
lmax
d
d2
Range_l2
d1
P21
Ident No
SEK2/A13/ESX25
2
52
42
42
39-45mm
3-16mm
99831136
6831136
Qty
Add
SEK2/ESX16
2
40
32
42
21-43mm
3-13mm
6723783
6723783
Qty
Add
SEK3/ESX32
3
53
50
50
29-56mm
3-20mm
30190215M
6723790
Qty
Add
SEK4/ESX40
4
70
63
60
35-62mm
3-30mm
30141053M
6723686
Qty
Add
